Measuring Flat Products and Long products

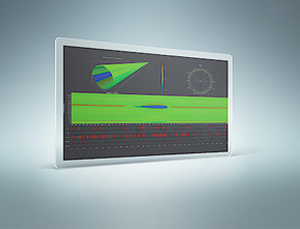

SMART CORE PRO :

SMART CORE PRO software provides users of CONTOUR CHECK SHAPE systems with intelligently configured geometrical data.

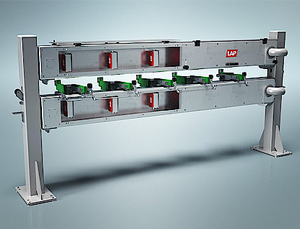

STRAIGHTNESS CHECK X-LINE

Checks the straightness of bars in current production. In addition, the system determines the diameter and ovality of the test object.

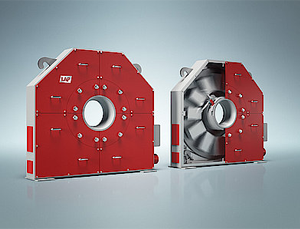

CONTOUR CHECK SHAPE

With a 360° measurement, the profile is detected at temperatures up to 1200 °C. The measuring system also detects surface defects.

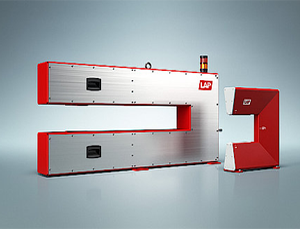

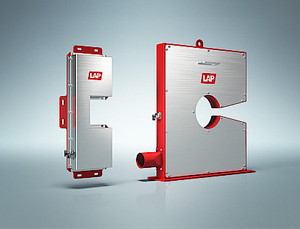

CONTOUR CHECK ROUND & EDGE

Measures profiles with a measurement range of up to 500 mm at temperatures up to 1200 °C using the shadowing method.

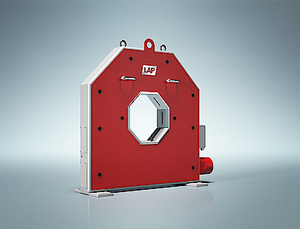

CONTOUR CHECK BAR & TUBE

Our measurement system for bars and rebar with a maximum measuring range of 150 mm at temperatures up to 200 °C.

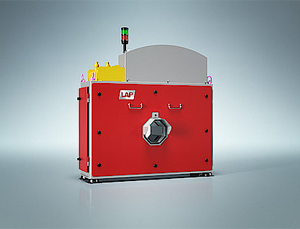

CONTOUR CHECK WIRE

Our measuring system for wires and bars with a maximum measuring range of 45 mm at temperatures up to 1200 °C
